Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

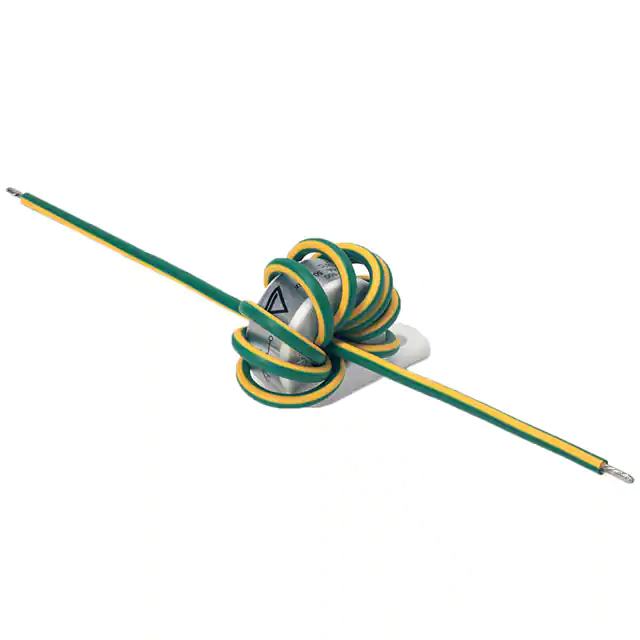

SNG-19A-080FIXED INDUCTOR 80UH 10 MOHM |
27,784 |
|
Datasheet |
SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
|
ETQ-PAF1R2HFAFIXED IND 1.2UH 22.6A 1 MOHM SMD |
33,729 |
|
Datasheet |
PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±30% | 22.6 A | 21.4A | Shielded | 1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
|
050AT2502VSMVERTICAL MOUNT TOROIDAL INDUCTOR |
13,161 |
|
Datasheet |
ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 5.3A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.625" L x 0.550" W (15.87mm x 13.97mm) | 0.550" (13.97mm) |
|
PL8302FIXED IND 20.4UH 13.5A 10.1 MOHM |
14,622 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
1537-701JFIXED IND 150NH 2.27A 28 MOHM TH |
23,625 |
|
- |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±5% | 2.27 A | 2.27A | Shielded | 28mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
MLRF24M394JMIL MOLDED AXIAL RF COIL |
34,259 |
|
Datasheet |
MLRF24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 mH | ±5% | 61 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
MLRF24M564JMIL MOLDED AXIAL RF COIL |
30,420 |
|
Datasheet |
MLRF24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 mH | ±5% | 56 mA | - | Unshielded | 53Ohm Max | 80 @ 250kHz | 1.25MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
PL8901NLTFIXED IND 1UH 11A 4 MOHM SMD |
39,324 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8901TFIXED IND 1UH 11A 4 MOHM SMD |
35,356 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8902NLTFIXED IND 1.5UH 10A 6 MOHM SMD |
18,809 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8902TFIXED IND 1.5UH 10A 6 MOHM SMD |
37,980 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8903NLTFIXED IND 2.7UH 9A 7.3 MOHM SMD |
33,469 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8903TFIXED IND 2.7UH 9A 7.3 MOHM SMD |
13,405 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8907TFIXED IND 7.6UH 5.5A 18.5MOHM SM |
16,622 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | ±30% | 5.5 A | 6.2A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
SMP8527-182KMOLDED UNSHIELDED INDUCTOR |
32,896 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 3.02 A | 2.2A | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-152KLFMOLDED UNSHIELDED INDUCTOR |
14,610 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 3.17 A | 2.6A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-222KLFMOLDED UNSHIELDED INDUCTOR |
24,364 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±10% | 2.88 A | 2A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-152KMOLDED UNSHIELDED INDUCTOR |
37,991 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 3.17 A | 2.6A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-272KMOLDED UNSHIELDED INDUCTOR |
16,858 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±10% | 2.65 A | 1.8A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-472KLFMOLDED UNSHIELDED INDUCTOR |
20,323 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 2.2 A | 1.4A | Unshielded | 101mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
